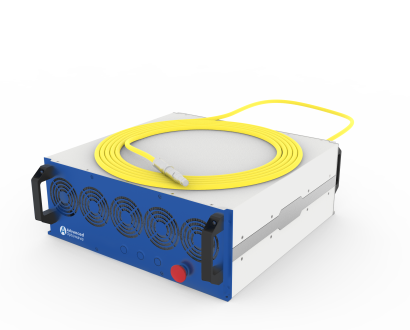

 AOFlex CW (3D) Series

Advanced Optowave’s Fiber CW Series is engineered to redefine efficiency in the 3D printing industry, delivering unmatched stability, precision, and high-power output for demanding applications.

  • High-Power Continuous Wave Output – Ensures optimal energy delivery for precision material processing.
  • Exceptional Beam Quality – Achieves superior melting uniformity, enhancing part accuracy and strength.
  • Optimized for Metal Powder Bed Fusion (PBF) – Tailored for additive manufacturing applications requiring fine control and repeatability.
  • Long-Term Reliability – Built for durability and minimal maintenance in industrial environments.
  • Seamless Integration – Compatible with automation systems for enhanced productivity and scalability.

Whether you’re producing intricate metal components or scaling up advanced manufacturing, the Fiber CW Series is designed to push the boundaries of innovation in 3D printing technology.

AOFlex CW (3D)
Specification 100 200 300 500
Wavelength (nm) 1064/532
Average Power(W) 100 200 300 500
QBH Divergence Angle(mrad) <120
Beam Quality (M²) <1.2
Output Power Adjustment Range (%) 10-100
Laser Switching On/Off Time (us) <10
Maxi. Modulation Repetition Rate(kHz) 50
Point Instability (PTP) (%) <5
Dimension (mm) 424 x 483 x 135 485 x 413 x 82
Net Weight (kg) <25 <20
Power Voltage (V) 48(DC)
Power Supply (W) 500 1000 1500 2000
Cooling Air/Water
