AONano GR 532nm Lasers

Features & Benefits

This is the high-power energy version of our AONano 532 laser series. The all-in-one design makes the laser more compact and reduces the total weight. It saves space for installation on the customer side, lowers the integration cost and simplifies the installation process. The water-cooled design allows the laser to work reliably in various harsh and extreme environments and makes the laser to be the ideal candidate for the 7×24 non-stop production needs.

The IP protection level is upgraded to IP65, the waterproof and dustproof level of the laser is
upgraded, which can easily cope with the extreme environment and solve the problem of condensation brought by high temperature and high humidity environment. Advanced features, including crystal indexing, cleaning air system, and automatic power optimization function enable the long-term stability and reliability of the laser.

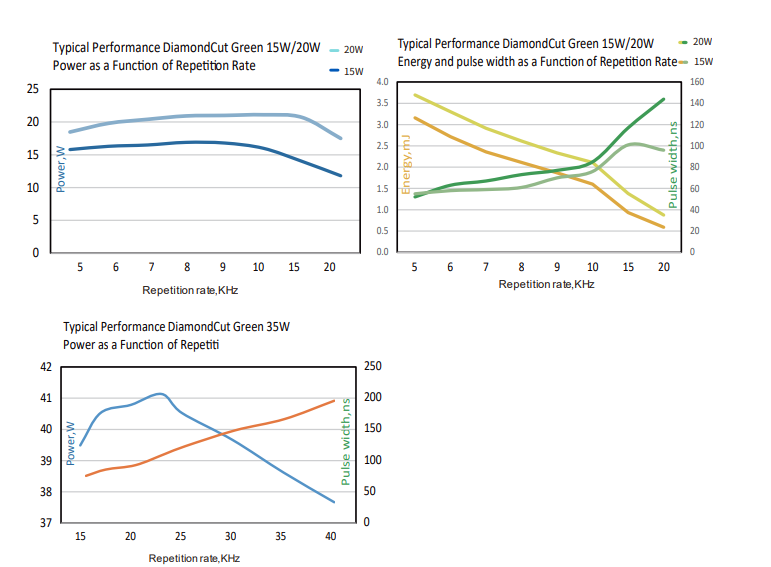

DiamondCut 532
Specification 15W-8K 20W-8K 35W-15k
Wavelength (nm) 532
Average Power (Watts) >15W@8KHz >20W@8KHz >35W@15k
Energy (mJ) > 1.8 > 2.5 >2
Specified Repetition Rate(kHz) 8 15
Repetition Rate (kHz) 5-20k 5-20k 14-40k
Pulse Width (ns) ~75
Beam Quality (M²) <1.2
Beam Roundness (%) >90
Beam Diameter (mm) ~1
Beam Divergence (mRad) <2
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Vertical
Pulse-to-Pulse Stability (% RMS) <2
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up <40
Standby Warm-Up <10
Operational Temperature Range (°C) 15 to 35 (59 – 95℉)
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) – 20 to 50 (-4 – 122℉)
Storage Humidity Range 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/600
Communication  Rs232
Cooling Water
Laser head (kg) 26 (57.3 lb)

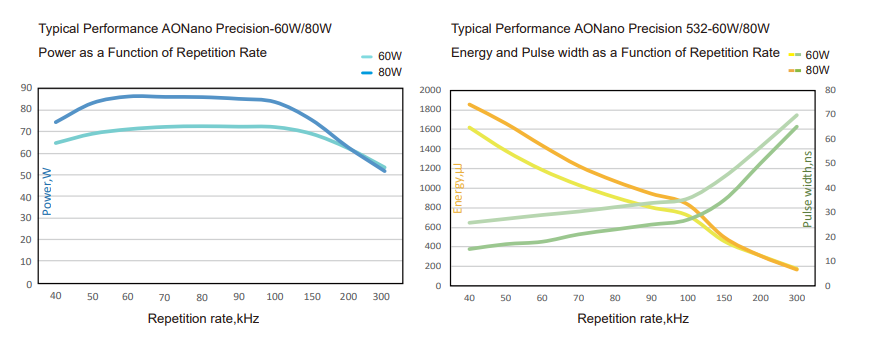

AONano Precision 532
Specification 60W-50K 80W-60K
Wavelength (nm) 532
Average Power (Watts) >60W@50KHz >80W@60KHz
Energy (mJ) > 1.2 > 1.4
Specified Repetition Rate(kHz) 50 60
Repetition Rate (kHz) 50-300
Pulse Width (ns) ~30 <20
Beam Quality (M²) <1.2
Beam Roundness (%) >90
Beam Diameter (mm) ~1.4
Beam Divergence (mRad) <2.3
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Vertical
Pulse-to-Pulse Stability (% RMS) <2
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up <40
Standby Warm-Up <10
Operational Temperature Range (°C) 5 to 40 (41 – 104℉)
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) – 20 to 50 (-4 – 122℉)
Storage Humidity Range 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/1000
Communication  Rs232
Cooling Water
Laser head (kg) 16 (35.2 lb)

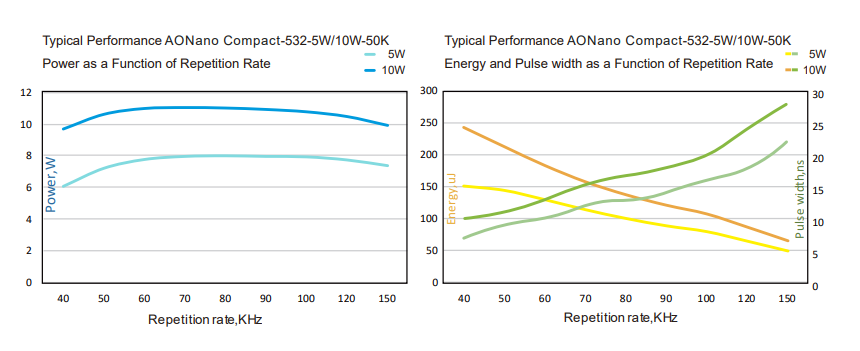

AONano Compact 532
Specification 5W-50K 10W-50K
Wavelength (nm) 532
Average Power (Watts) 5 >10
Energy (uJ) > 100 > 200
Specified Repetition Rate(kHz) 50
Repetition Rate (kHz) 50-150
Pulse Width (ns) <15
Beam Quality (M²) <1.2
Beam Roundness (%) >90
Beam Diameter (mm) ~0.5
Beam Divergence (mRad) <1.5
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Vertical
Pulse-to-Pulse Stability (% RMS) <3
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up <40
Standby Warm-Up <10
Operational Temperature Range (°C) 15 to 30 (41 – 86℉)
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) – 20 to 50 (-4 – 122℉)
Storage Humidity Range 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/350
Power Consumption (W) <110 <130
Communication  Rs232
Cooling Water
Laser head (kg) 5 (11 lb)
