AONano Compact-532nm Additional Information

Features & Benefits

Both air-cooled version and water-cooled version are available for this laser model. The compact size saves space for installation on the customer side, lowers the integration cost and simplifies the installation process. The umbilical length between the laser head and controller can be customized according to the customer’s demand.

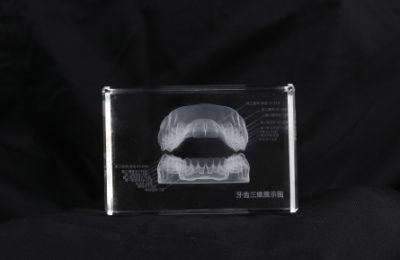

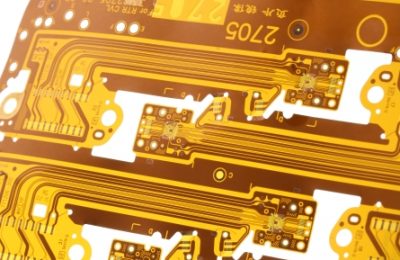

Both 5W version and 10W version available. The typical repetition range is 30kHz to 150kHz. The pulse energy can be beyond 100μJ. The short pulse width (<15ns @ 50k), the excellent beam quality (M 2<1.2), and the great beam roundness (> 90%) enable this laser model a perfect candidate for various application areas, including PCB marking, glass marking, glass engraving, and so on.

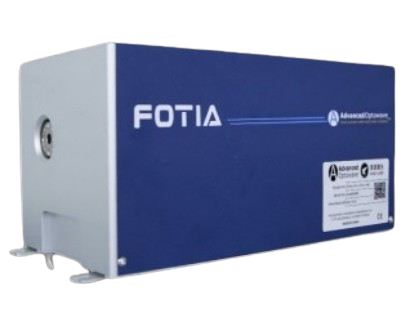

AONano Compact 532
Specification 532-5W-50K 532-10W-50K
Wavelength (nm) 532
Average Power (Watts) 5 10
Energy (µJ) >100 >200
Specified Repetition Rate (kHz) 50
Repetition Rate (kHz) 10 ~ 300
Pulse Width (ns) <15
Beam Quality (M²) < 1.2
Beam Roundness (%) > 90
Beam Diameter (mm) ~0.5
Beam Divergence (mRad) < 1.5
Point Stability (µrad/°C) < 20
Polarization Ratio 100:1 Linear, Horizontal
Pulse-to-Pulse Stability (% RMS) < 3
Average Power Stability (% over 12 hours) < 3
Cold Start Warm-Up (mins.) < 40
Standby Warm-Up (mins.) < 10
Operational Temperature Range (°C) 15-30°C
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) -20 to 50
Storage Humidity Range (%) 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/450
Power Consumption(W) < 110 < 130
Communication RS232
Cooling Air/Water
Laser head (kg) 5.24
controller (kg) 3.9

AONano Compact -532

Applications
