AOMarker E/D-Series
Additional Information

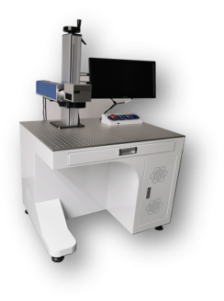

AOMarker Series (UV/Fiber Laser Marking System)

UV/Fiber Laser Marking System With Enclosure

The AOMarker E Series from Advanced Optowave Corporation is perfect for a variety of applications, including metal marking, PCB/FPC marking, plastic marking, PET/HDPE marking, glass marking, and more. With FDA certification and safety designs such as a safety shutter and laser protective windows, you can trust that this machine is safe to use. The AOMarker E Series also features an auto-focusing function, 3-axis dynamic system, and co-axial vision system to ensure accurate and precise marking every time. Plus, it can be equipped with a UV laser (AOC self-innovated), fiber laser, or CO2 laser to meet your specific needs. And if you need additional functionality, the AOMarker E Series is optional for extension with a loading & unloading system, rotation, disk rotation, linear motor X/Y stage.

Key Applications:

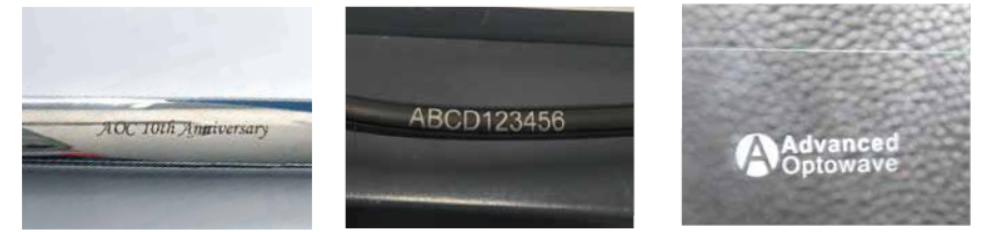

Metal/ Plastic/ Polymer/ Glass/ Crystal Marking

AOMarker E/D-Series

AOMarking E-Series AOMarking D-Series
Model UV Fiber Fiber UV
Laser Power 3-15W 30-60W 60-100W 3-10W
Frequency 50kHz 1-4000kHz



1-4000kHz

50kHz

Wavelength 355nm 1,064nm



1,064nm

355nm

Marking Area

110*110-F163

150*150-F180

110*110-F163

150*150-F180

180*180-F250

200*200-F330

300*300-F420



110*110-F163

150*150-F180

180*180-F250

200*200-F330

300*300-F420

110*110-F163

150*150-F180

Focus Height

±20mm

Focus Method

3-axis dynamic focusing









Min. Line Width 0.02mm .03mm .03mm 0.02mm

Marking Speed

≥8000mm/s

Positioning

Auto-focusing
Safety Function

Laser shutter

Laser Protective Window

Anti-pinch Function

Auto Door Function

Emergency Stop

Laser shutter

Emergency Stop



Dimension

1285*700*1835mm

1100*700*1835mm

750*560*760mm 850*650*760mm
Table Size 300mm x 300mm
Z Max. Travel Max. 290mm

Weight Capacity on Table

≤50kg
Optional

CCD Positioning

Rotary Device

Rotary Disk

Linear Motor Dual-axis Stage (X-Y: 600mm*400mm)
